Deviation Control System

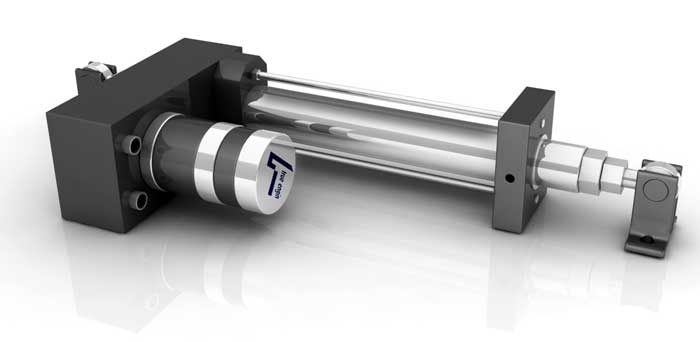

EPD-2XX servo motor linear driver

Product nameEPD-2XX servo motor linear driver
Product introduction
EPD-2XX adopts brushless DC driver .It is efficient ,fast , Fast Start-up ,big torque and maintenance-free.It applies for high accurate deviation and can be used with the EPC-200

Products detailed

Characteristics：
   ▲ brushless servo motor drive and maintenance-free
   ▲ accurate ball screw
   ▲ without travel switches position pulse is caculated by coder
   ▲ thrust 100Kg to 300Kg，maximum thrust 1.5T to 3T
   ▲ drive speed 20mm/S to 40mm/S

Technique：

model	distance	thrust	maximun drive speed
EPD-201	150mm	100Kg	23mm/S
EPD-202	150mm	200Kg	16mm/S
EPD-203	150mm	300Kg	20mm/S
